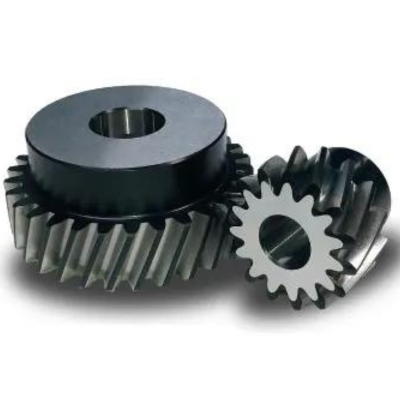

A helical gear is a type of gear with teeth that are cut at an angle along a helix or spiral path around the gear’s axis. The teeth on a helical gear are not parallel to the axis but are instead oriented at an angle. This design feature gives helical gears several advantages, including smoother operation, increased load-bearing capacity, and reduced noise and vibration compared to spur gears.

The primary function of a helical gear is to transmit rotational motion and torque between parallel or slightly crossed axes. The angled teeth on helical gears allow for gradual tooth engagement, resulting in a smoother transfer of power and motion. The specific functions of helical gears include:

Power Transmission: Helical gears are used to transmit power and torque between parallel or slightly crossed axes. The angled teeth allow for gradual engagement, ensuring a smooth transfer of power, reduced shock loads, and improved load distribution.

Speed Reduction or Increase: By using different-sized helical gears, the rotational speed can be adjusted between the driving gear and the driven gear. Helical gears provide a wide range of gear ratios for speed reduction or increase, depending on the gear sizes and orientations.

Angular and Axial Load Capacity: Helical gears have superior load-bearing capabilities compared to spur gears. The inclined teeth distribute the load over a larger contact area, allowing for higher torque transmission and increased axial load capacity.

Noise and Vibration Reduction: The helical tooth design of the gears helps in reducing noise and vibration during operation. The gradual tooth engagement and increased contact area minimize gear meshing impact, resulting in quieter and smoother operation.

Helical gears are needed in various engineering applications, including:

Machinery and Industrial Equipment: Helical gears find widespread use in machinery and industrial equipment, such as gearboxes, turbines, compressors, and pumps. They provide reliable power transmission, high torque capacity, and reduced noise for these applications.

Automotive Industry: Helical gears are extensively used in automotive applications, particularly in manual transmissions. They enable smooth gear shifting, efficient power transmission, and improved load-carrying capacity.

Gear Drives: Helical gears are employed in gear drives, such as belt and pulley systems, chain drives, and gearboxes, for transmitting motion and torque between rotating components.

Marine Propulsion: Helical gears are used in marine propulsion systems, including inboard and outboard motors, to convert rotational motion from the engine into thrust for propelling boats and ships.

Wind Turbines: Helical gears are utilized in the gearboxes of wind turbines to convert the low rotational speed of the turbine blades into higher speed for electricity generation.

Aerospace and Defense: Helical gears find application in aerospace and defense equipment, such as aircraft engines, helicopters, and missile guidance systems. They provide efficient power transmission and motion control in these critical applications.

Helical gears offer improved performance characteristics compared to spur gears, making them suitable for applications that require smooth power transmission, high load capacity, and reduced noise and vibration.
