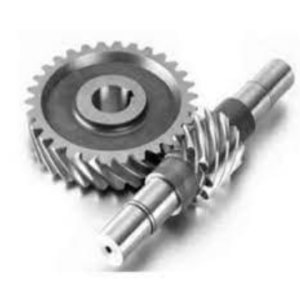

A worm gear is a type of gear that consists of a threaded shaft, known as the worm, and a mating gear with teeth, called the worm wheel or worm gear. The worm has a helical thread that wraps around the shaft, while the worm wheel has teeth that mesh with the worm. Worm gears are designed to provide high gear reduction ratios, high torque transmission, and self-locking capabilities.

The primary function of a worm gear is to transmit rotational motion and torque between non-intersecting, perpendicular shafts. The interaction between the worm and the worm wheel results in a significant gear reduction ratio, allowing for slower output speeds compared to the input speed. The specific functions of worm gears include:

High Gear Reduction Ratio: Worm gears are used to achieve high gear reduction ratios. The number of teeth on the worm wheel in relation to the number of threads on the worm determines the reduction ratio. This enables the conversion of high-speed input rotation into low-speed output rotation.

High Torque Transmission: Worm gears are capable of transmitting high torque due to the large contact area between the worm and the worm wheel. This makes them suitable for applications that require high torque output, such as lifting equipment, winches, and conveyors.

Self-Locking: One unique characteristic of worm gears is their ability to self-lock, preventing back-driving. The angle of the helical thread on the worm creates a mechanical advantage that resists rotation in the opposite direction. This self-locking property makes worm gears suitable for applications where it is essential to prevent reverse rotation, such as in hoists and lifting mechanisms.

Quiet Operation: The sliding contact between the worm and the worm wheel teeth allows for smoother and quieter operation compared to gears with meshing teeth. This makes worm gears suitable for applications where noise reduction is important, such as in precision machinery and motion control systems.

Worm gears are needed in various engineering applications, including:

Power Transmission: Worm gears are widely used in power transmission systems where high gear reduction ratios and torque transmission are required. They can be found in applications such as gearboxes, speed reducers, and power winches.

Lifting and Hoisting: Worm gears are commonly used in lifting and hoisting equipment, including cranes, elevators, and material handling systems. Their self-locking feature ensures that the load remains in place without the need for additional braking mechanisms.

Automotive Industry: Worm gears are employed in automotive applications, particularly in steering systems. They are used in the steering gearboxes to convert the rotational motion from the steering wheel into the linear motion required to turn the vehicle’s wheels.

Conveyor Systems: Worm gears are utilized in conveyor systems to provide controlled and precise movement of materials or products. They offer efficient power transmission and the ability to handle heavy loads.

Robotics: Worm gears find application in robotics for precise and controlled movement of robotic arms, grippers, and other mechanical components. They are particularly useful in applications that require high torque and self-locking capabilities.

Industrial Machinery: Worm gears are used in various industrial machinery, such as packaging machines, textile machines, and printing presses, where they provide reliable power transmission and precise motion control.

Worm gears offer unique characteristics that make them suitable for applications requiring high gear reduction ratios, high torque transmission, self-locking capabilities, and quiet operation. Their versatility and ability to provide reliable and efficient power transmission make them valuable components in various engineering systems and equipment.
